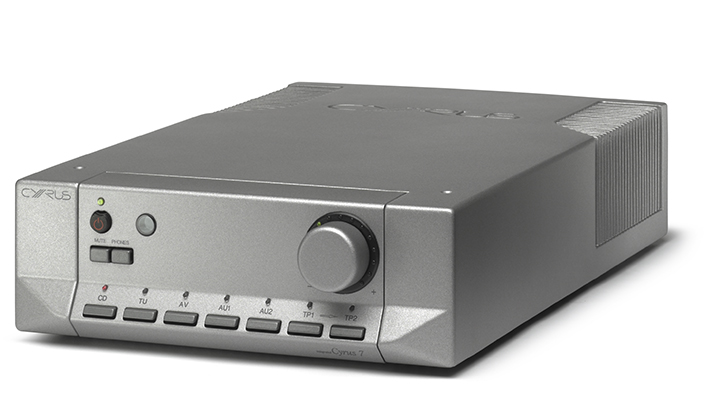

Cyrus 7

The Cyrus 7 is a powerful integrated amp and system controller. Upgradeable in many directions this flexible unit will form the cornerstone of your system and provide access into our AV and multiroom systems. A simple MC-BUS connection to other Cyrus products in the system allows complex system switching (even large systems including AV and multiroom) to be operated simply and without fuss. PSX-R upgradeable.

The Cyrus 7 was the latest evolution in a line of respected amplifiers from the Cyrus marque at the time. This amplifier builds on the traditional Cyrus benefits of superb sound quality, technical excellence, and system flexibility as the core of a quality audio system. With a selection of partnering Cyrus source components and system extensions for multi-room or audio-visual applications.

A new high-efficiency power amplifier circuit which packs 60W of stereo power into the stylish Cyrus case. The power amplifier employs single substrate input transistors for consistent operating conditions and a new fast-bias output stage to deliver consistently low crossover distortion and minimise transient thermal distortions. A speaker compensation network optimises the interface between the amplifier and loudspeaker. Twin bi-wirable terminals are included for convenient biwire connection. The quality lightweight die-cast enclosure of the Cyrus 7 has a myriad of advantages both electrically and mechanically. The non-resonant nature of the alloy minimises microphonic effects, while its nonferrous composition provides an effective shield from external electro-magnetic disturbances. This also eliminates coupling of the power transformer stray magnetic fields to the sensitive audio circuitry.

Specification

  • 60W/CH (into 8 Ohms)
  • 74W/CH (into 4 Ohms)
  • Distortion – 0.003%, 1kHz
  • Freq Resp – -3 dB
  • Output voltage – 380mV
  • S/N Ratio – 101dBA
  • Dimensions – H73 x W215 x D360mm
  • Weight – 4.6kg
  • Line inputs – 5 Line + 2 Tape
  • Bi-wire Loudspeakers, Tape-out
  • Preamp-out, Headphone
  • PSX-R upgradeable
  • MC-BUS System
