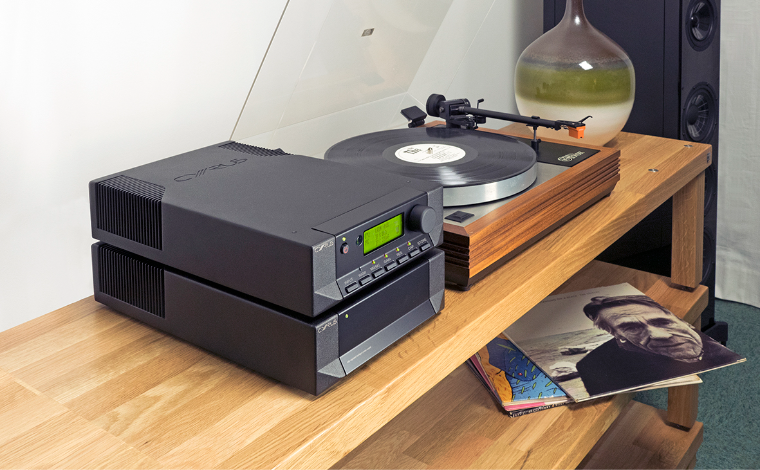

Phono Signature

Our award-winning Phono Signature is lauded as one of the best phono stages at any price. Designed to exceed the expectations of the most serious vinyl audiophiles, the purity of the tiny signal produced from the stylus is preserved throughout the amplification journey, through a deep understanding of circuit design and our relentless pursuit of perfection.

Music produced from a well-calibrated turntable, good stylus and the Cyrus Phono Signature is surely one of the finest experiences in audio.

Four turntables may be permanently connected allowing the listener to easily switch between turntables, arms or cartridges as desired.

Stereo output level meters working in real time allow clear and accurate gain adjustment to optimise the headroom available from your system for each MC cartridge.

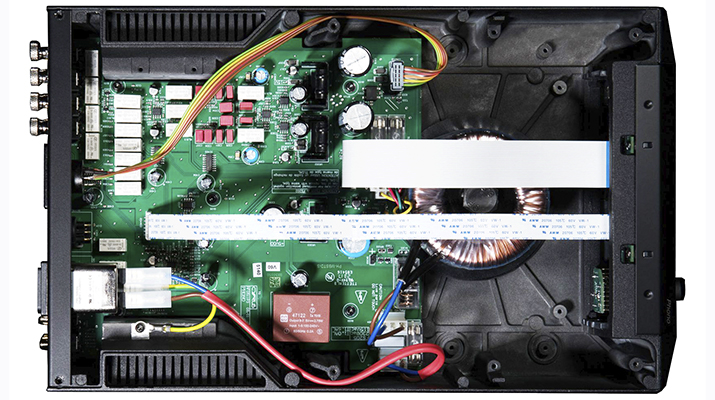

The Phono Signature enjoys a high capacity and very low noise DC power supply that enables the pre-amplifier to provide an extremely wide dynamic range ensuring extended signal levels long before clipping. Attention to circuit layout and component placement ensures a very low noise floor to further expand musical dynamics.

The passive RIAA filtering uses very high performance metalized polyester capacitors for ultimate accuracy and performance.

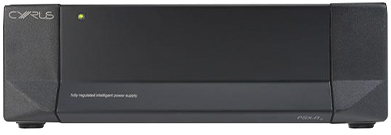

Additional performance will be gained by connecting the optional external PSX-R2 power supply. This provides highly regulated DC power for the signal amplification.


Specification

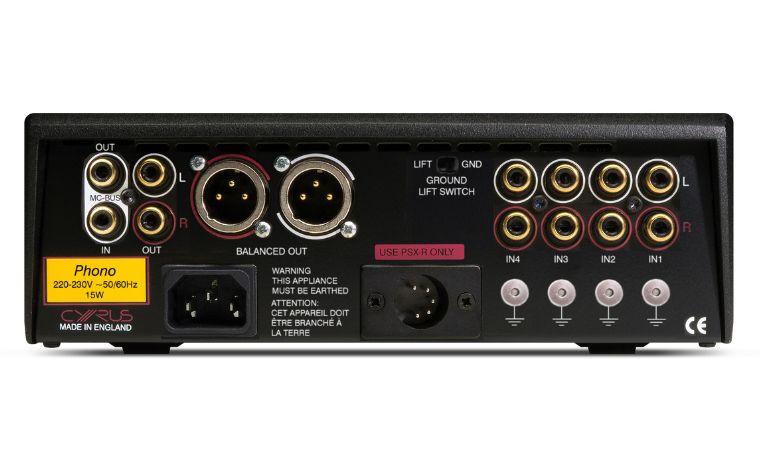

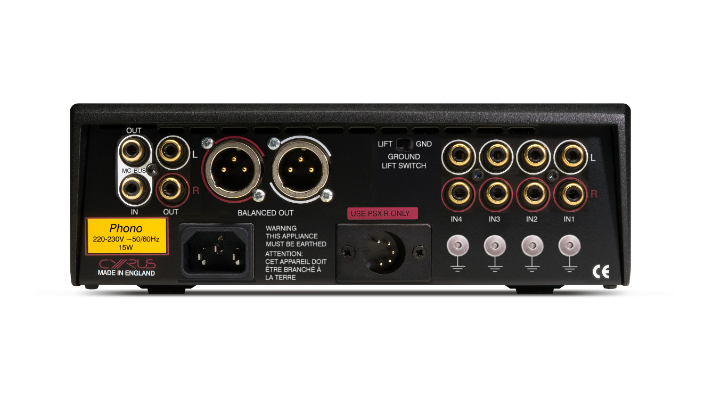

  • MC inputs configurable for gain
  • XLR balanced and RCA outputs
  • Warp filter to reduce bass unit excursion
  • Ground lift switch to help eliminate system hum
  • PSX-R2 port for the ultimate upgrade
  • Dimensions (H x W x D) - 73 x 215 x 360 mm
  • Weight - 4.1kg
